ST92F150JDV1QC

Product Summary

The ST92F150JDV1QC microcontroller is developed and manufactured by STMicroelectronics using a proprietary n-well HCMOS process. Its performance derives from the use of a flexible 256-register programming model for ultra-fast context switching and real-time event response. The intelligent on-chip peripherals offload the ST9 core from I/O and data management processing tasks allowing critical application tasks to get the maximum use of core resources. The new-generation ST9 MCU devices now also support low power consumption and low voltage operation for powerefficient and low-cost embedded systems.

Parametrics

Absolute maximum ratings: (1)VDD, Supply Voltage: – 0.3 to 6.5 V; (2)AVDD, ADC Reference Voltage: VSS to VDD + 0.3 V; (3)AVSS, ADC Ground: VSS; (4)VIN, Input Voltage (all pins except pure open drain I/O pins): – 0.3 to VDD + 0.3 V; (5)VINOD, Input Voltage (pure open drain I/O pins): – 0.3 to 6.5 V; (6)VAIN, Analog Input Voltage (ADC inputs): -0.3 to AVDD + 0.3 V; (7)TSTG, Storage Temperature: – 55 to +150 ℃; (8)IIO, Load Current: 10 mA; (9)IINJ, Pin Injection Current - Digital and Analog Inputs: 10 mA; (10)ITINJ, Absolute sum of all Pin Injection Current in the device: 100 mA.

Features

Features: (1)Memories: Internal Memory: Single Voltage FLASH up to 256 Kbytes, RAM up to 8Kbytes, 1K byte E3 TM (Emulated EEPROM); In-Application Programming (IAP); 224 general purpose registers (register file) available; (2)as RAM, accumulators or index pointers; (3)Clock, Reset and Supply Management: Register-oriented 8/16 bit CORE with RUN, WFI, SLOW, HALT and STOP modes; 0-24 MHz Operation (Int. Clock), 4.5-5.5 V range; PLL Clock Generator (3-5 MHz crystal); Minimum instruction time: 83 ns (24 MHz int. clock); (4)Up to 80 I/O pins; (5)Interrupt Management: 4 external fast interrupts + 1 NMI; Up to 16 pins programmable as wake-up or additional; (6)external interrupt with multi-level interrupt handler ; (7)DMA controller for reduced processor overhead; (8)Timers: 16-bit Timer with 8-bit Prescaler, and Watchdog Timer; (activated by software or by hardware); 16-bit Standard Timer that can be used to generate a time base independent of PLL Clock Generator; Two 16-bit independent Extended Function Timers (EFTs) with Prescaler, up to two Input Captures and up to two Output Compares; Two 16-bit Multifunction Timers, with Prescaler, up to two Input Captures and up to two Output Compares.

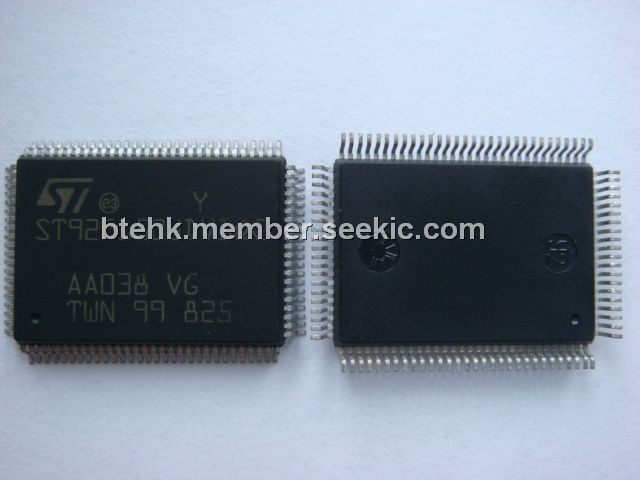

Diagrams
