Product Summary

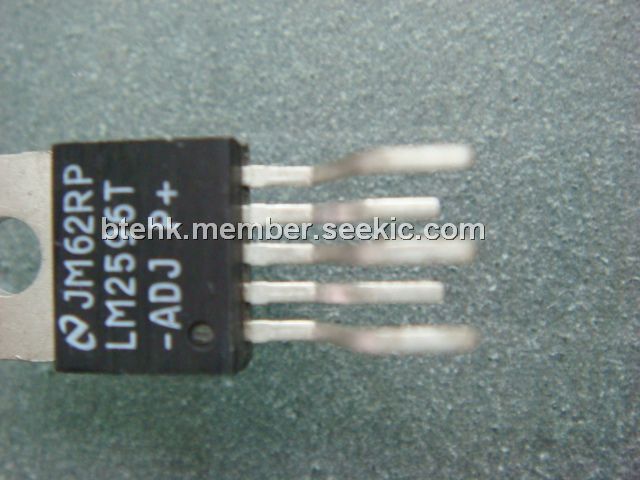

The LM2596T-ADJ is a 3A Step-Down Voltage Regulator. It is available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version.
Parametrics
Absolute maximum ratings: (1)Maximum Supply Voltage 45V; (2)ON /OFF Pin Input Voltage:-0.3 ≤ V ≤ +25V; (3)Feedback Pin Voltage:-0.3 ≤ V ≤+25V; (4)Output Voltage to Ground(Steady State):-1V; (5)Power Dissipation:Internally limited; (6)Storage Temperature Range:-65℃ to +150℃; (7)Maximumm junction temperature:+150℃.
Features
Features: (1)3.3V, 5V, 12V, and adjustable output versions; (2)Adjustable version output voltage range, 1.2V to 37V; (3)±4% max over line and load conditions; (4)Available in TO-220 and TO-263 packages; (5)Guaranteed 3A output load current; (6)Input voltage range up to 40V; (7)Requires only 4 external components; (8)Excellent line and load regulation specifications; (9)150 kHz fixed frequency internal oscillator; (10)TTL shutdown capability; (11)Low power standby mode, IQ typically 80 μA; (12)High efficiency; (13)Uses readily available standard inductors; (14)Thermal shutdown and current limit protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2596T-ADJ |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||||
|
LM2596T-ADJ/LB02 |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||||
 |
LM2596T-ADJ/NOPB |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers 150 KHZ 3A STEP-DOWN VLTG REG |
Data Sheet |
|
|
||||||||||||
|
LM2596T-ADJ/LF02 |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||||
|
LM2596T-ADJ/LB05 |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||||
