Product Summary

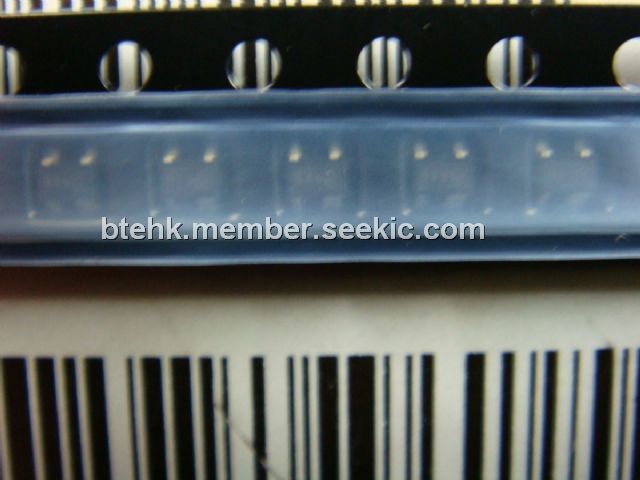

The BGA622 is a wide band low noise amplifier, based on Infineon Technologies’Silicon Germanium Technology B7HF.
Parametrics
Absolute maximum ratings: (1)Voltage at pin Vcc:3.5V; (2)Voltage at pin Out:4V; (3)Current into pin In:0.1mA; (4)Current into pin Out:1mA; (5)Current into pin Vcc:10mA; (6)RF input power:6dBm; (7)Total power dissipation, TS < 139℃):35mW; (8)Junction temperature:150℃; (9)Ambient temperature range:-65℃ to +150℃; (10)Storage temperature range:-65℃ to +150℃; (11)Thermal resistance: junction-soldering point:300K/W.
Features
Features: (1)Low noise figure, NF=1.1 dB at 2.14 GHz; (2)Operating frequency range:0.5GHz to 6GHz; (3)Typical supply voltage: 2.75 V; (4)On/Off-Switch; (5)Output-match on chip, input pre-matched; (6)Low part count; (7)70 GHz fT-Silicon Germanium technology.

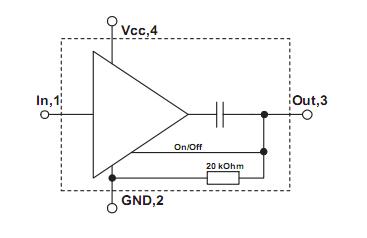

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGA622 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
 |
BGA616E6327 |
|
IC AMP MMIC 80MA 4.5V SOT343 |
Data Sheet |
|
|
||||||||||||||||||
|
BGA619 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
BGA622 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
BGA6289 |
NXP Semiconductors |
RF Amplifier TAPE-7 MMIC-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
BGA6489,135 |
NXP Semiconductors |
RF Amplifier TAPE-7 MMIC-RFSS |
Data Sheet |
|
|
||||||||||||||||||
|
BGA6489 |
NXP Semiconductors |
RF Amplifier TAPE-7 MMIC-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||||||||
