Product Summary

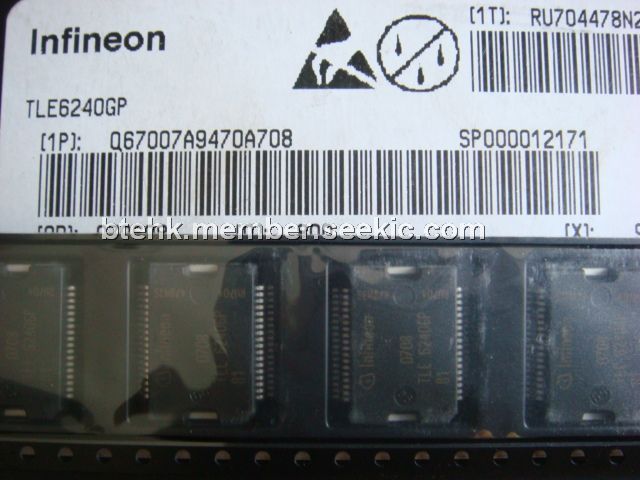

The TLE6240GP is a 16-fold Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and 16 open drain DMOS output stages.

Parametrics

Absolute maximum ratings: (1)Supply voltage:-0.3V to 7V ; (2)Continuous Drain Source Voltage(OUT1 to OUT16):45V; (3)Input Voltage, All Inputs and Data Lines:-0.3V to 7V ; (4)Output current per Channel(see Chapter 5):ID(lim) min; (5)Output current(Max. total current of all channels on; Heat Sink required):14A; (6)Electrostatic Discharge Voltage:2000V.

Features

Features: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)16 bit Serial Data Input and Diagnostic Output (2 bit/channel for Open Load- and Short to GND detection); (5)Direct Parallel Control of eight channels for PWM Applications; (6)Parallel Inputs High or Low Active programmable; (7)General Fault Flag; (8)Low Quiescent Current; (9)Compatible with 3 V Microcontrollers; (10)Electrostatic discharge (ESD) Protection; (11)Green Product (RoHS compliant); (12)AEC Qualified.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLE6240GP
TLE6240GP

Infineon Technologies

Power Switch ICs - Power Distribution MULTI CHANNEL SWITCH

Data Sheet

0-471: $4.28
471-500: $3.91
500-800: $3.91
800-1000: $3.40
