Product Summary

The DS2E-S-DC24V is a highly sensitive 1500 V FCC surge withstanding miniature relay.

Parametrics

General specifications: (1)Max. switching power:60 W, 125 VA; (2)Max. switching voltage:220 V DC, 250 V AC; (3)Max. switching current:2 A DC, AC; (4)Max. carrying current:3 A DC, AC; (5)ambient temperature:-40℃ to +70℃.

Features

Features: (1)High sensitivity: 200mW pick-up power, 100mW pick-up power types available; (2)Latching types available; (3)High switching capacity: 60 W, 125 V A; (4)High breakdown voltage: 1,500 V FCC surge between open contacts, 1,000 V AC between open contacts; (5)Gold-cap silver palladium types available for 2 Form C type; (6)Bifurcated contacts are standard.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

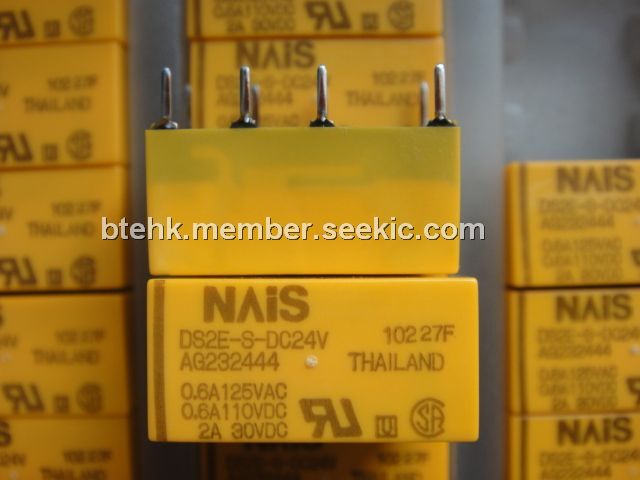

DS2E-S-DC24V
