Product Summary

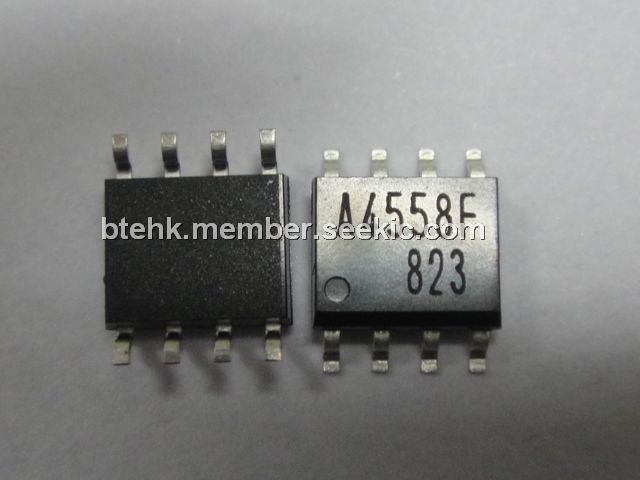

The KIA4558F is a dual low noise operational amplifier.


Absolute maximum ratings: (1)supply voltage:36V, 18V or 0V, -18V; (2)differential voltage:±30V; (3)input voltage: VCC to VEE; (4)power dissipation:240mW; (5)operating temperature:-40℃ to +85℃; (6)storage temperature:-55℃ to +125℃.


Features: (1)internal frequency compensation type.; (2)possible to exchange the position of pin 9 for pin 1 because of pin 6 connection being symmetric; (3)pin 1 and pin 9 of lead frame was each other connected; (4)wide band range:fT=3MHz; (5)suitable application for active filter and equalizer amplifier.
