Product Summary

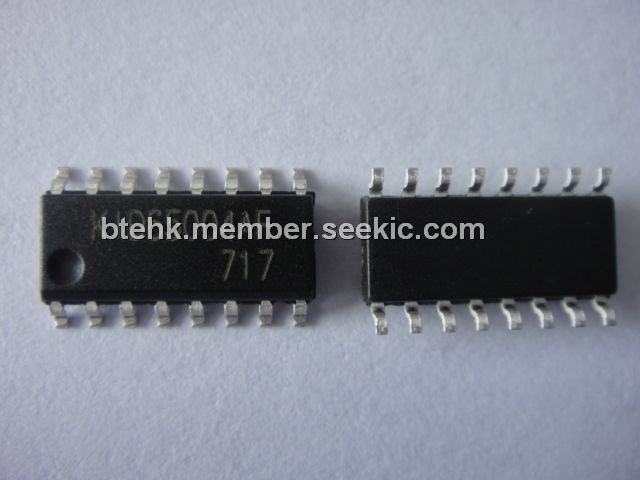

The KID65004AF is a high-voltage, high-current darlington transistor array comprised of seven NPN darlinton pairs. It features internal clap diodes for switching inductive loades.
Parametrics
Maximum ratings: (1)output sustaining voltage, VCE(SUS): 50 V; (2)output current, IOUT: 500 mA; (3)input voltage, VIN: -0.5 to +30 V; (4)input current, IIN: 25 mA; (5)clamp diode reverse voltage, VR: 50 V; (6)clamp diode forward current, IF: 500 mA; (7)GND terminal current, IGND: 2.8 A; (8)power dissipation, PD: 1.47 W; (9)operating temperature, Topr: -40 to 85℃; (10)storage temperature, Tstg: -55 to 150℃.
Features
Features: (1)output curent: 500mA max; (2)high sustaining voltage outputs: 50v min; (3)output clamp diodes; (4)inputs compatible with various types of logic; (5)PKG type AP: DIP-16pin, AF: FLP-16pin.

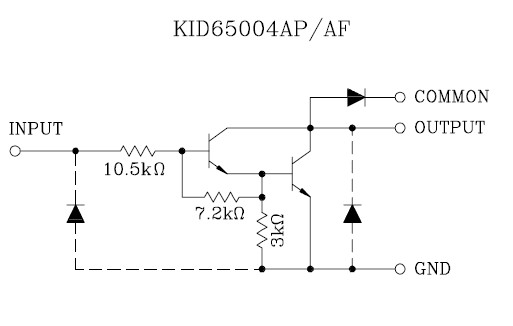

Diagrams
 |
