Product Summary

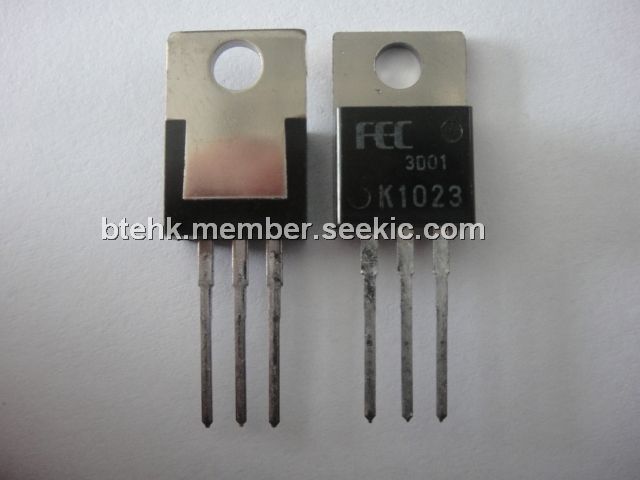

The K1023 is a N-channel silicon power MOS-FET.

Parametrics

Absolute maximum ratings: (1)drain-source voltage:800V; (2)continuous drain current:4A; (3)pulsed drain current:10A; (4)continuous reverse drain current:4A; (5)gate-sourece peak voltage:±30V; (6)max. power dissipation:60W; (7)operating temperature range:150℃; (8)storage temperature range:-55℃ to +150℃.

Features

Features: (1)high speed switching; (2)low on-resistance; (3)no secondary breakdown; (4)low driving power; (5)high voltage; (6)VGSS=±30V guarantee; (7)avalanche-proof.

Diagrams

K102
K102
Other

Data Sheet
Negotiable
